Product Introduction
UNIBEADS with a refractive index of 2.2
Features
- These glass beads are suitable for use in closed-type retroreflective materials, where the glass beads are embedded within a resin layer.
- With a high refractive index of 2.2, they maintain retroreflective performance even when covered by the resin.
- Closed-type retroreflective materials are commonly used in traffic signs, license plates, and other applications requiring high visibility.
Characteristics
| Raw Material | Titanium Barium Glass |
| Refractive Index | 2.2 |
| Specific Gravity | 4.6 |
Items
| Product Name | Main Particle Size (μm) |
|---|---|
| UB-R052NH | 25 - 45 |
| UB-R12NH | 38 - 45 |
| UB-R23NH | 45 - 53 |
| UB-R34NH | 53 - 63 |
| UB-R45NH | 63 - 75 |
* Acrylic silane coating (AC notation at the end of the product name) is the standard product.
* For particle sizes other than the above, please contact us.
Type of Packing
- Can:
25kg
Cross-sectional shape of closed type
Examples of closed-type reflective materials

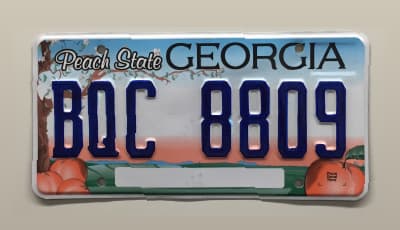

Daytime

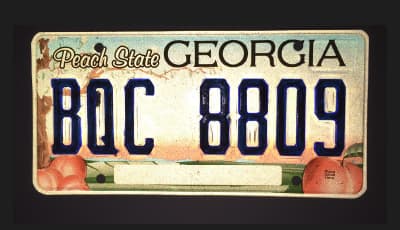

Night Time
